Solar Panels (300-600W)

Products DescriptionThe solar panel series includes a variety of products such as mono solar panel, double glass solar panel, portable solar panel, mini solar panels, flexible solar panels, and more.1. Offering a wide range of power outputs, ranging f
Description

Products Description

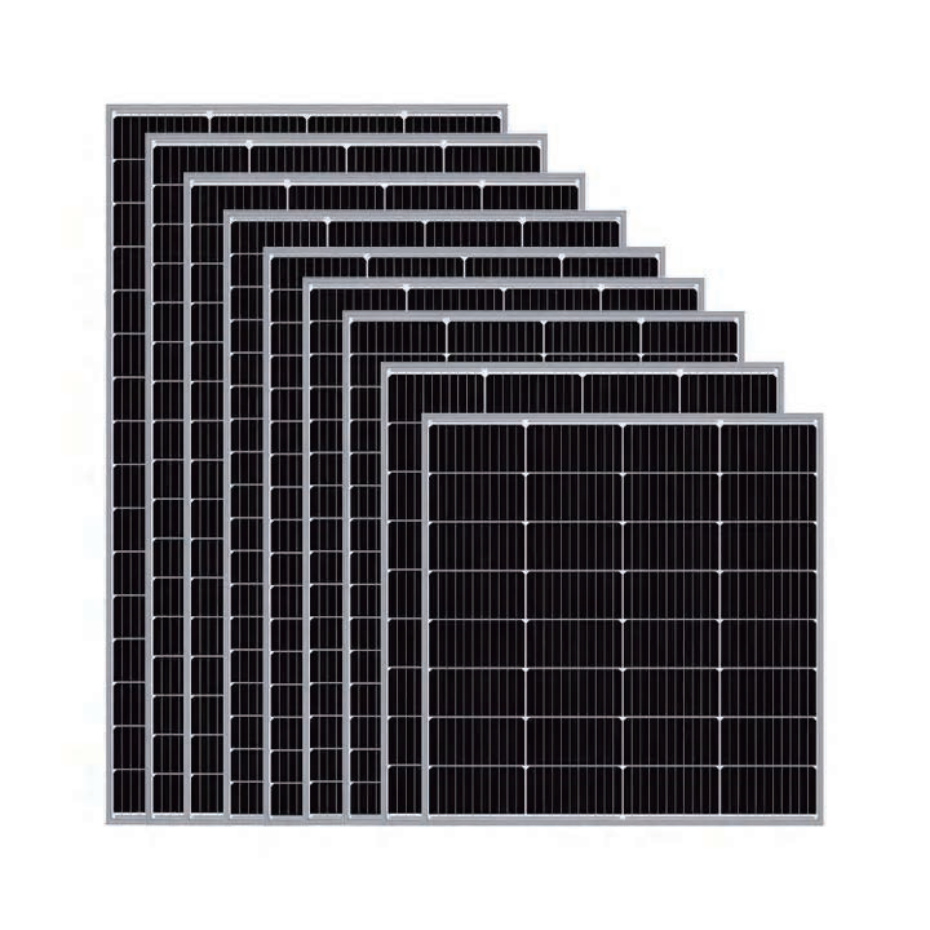

The solar panel series includes a variety of products such as mono solar panel, double glass solar panel, portable solar panel, mini solar panels, flexible solar panels, and more.

1. Offering a wide range of power outputs, ranging from 300W to 600W, which can be adapted to devices with different power requirements.

2. In terms of size, the module dimensions vary among different models. This diverse size design allows for flexible installation in various spaces.

3. The voltage and current parameters also have their own characteristics, ensuring that the solar panels can generate electricity stably under different lighting conditions.


Parameters
Pm(W)Module Size (mm)Vm(V)Im(A)Voc(V)Isc(A)
6002382×1134×354714.747.515.7
5502278×1134×354113.450.814.6
5002094×1134×353813.24714.3
4501909×1134×353512.943.314
4001724×1134×353112.938.414.1
3601515×1134×352713.333.414.5
3301425×1134×35349.742.110.6
3001290×1134×30348.842.19.6
