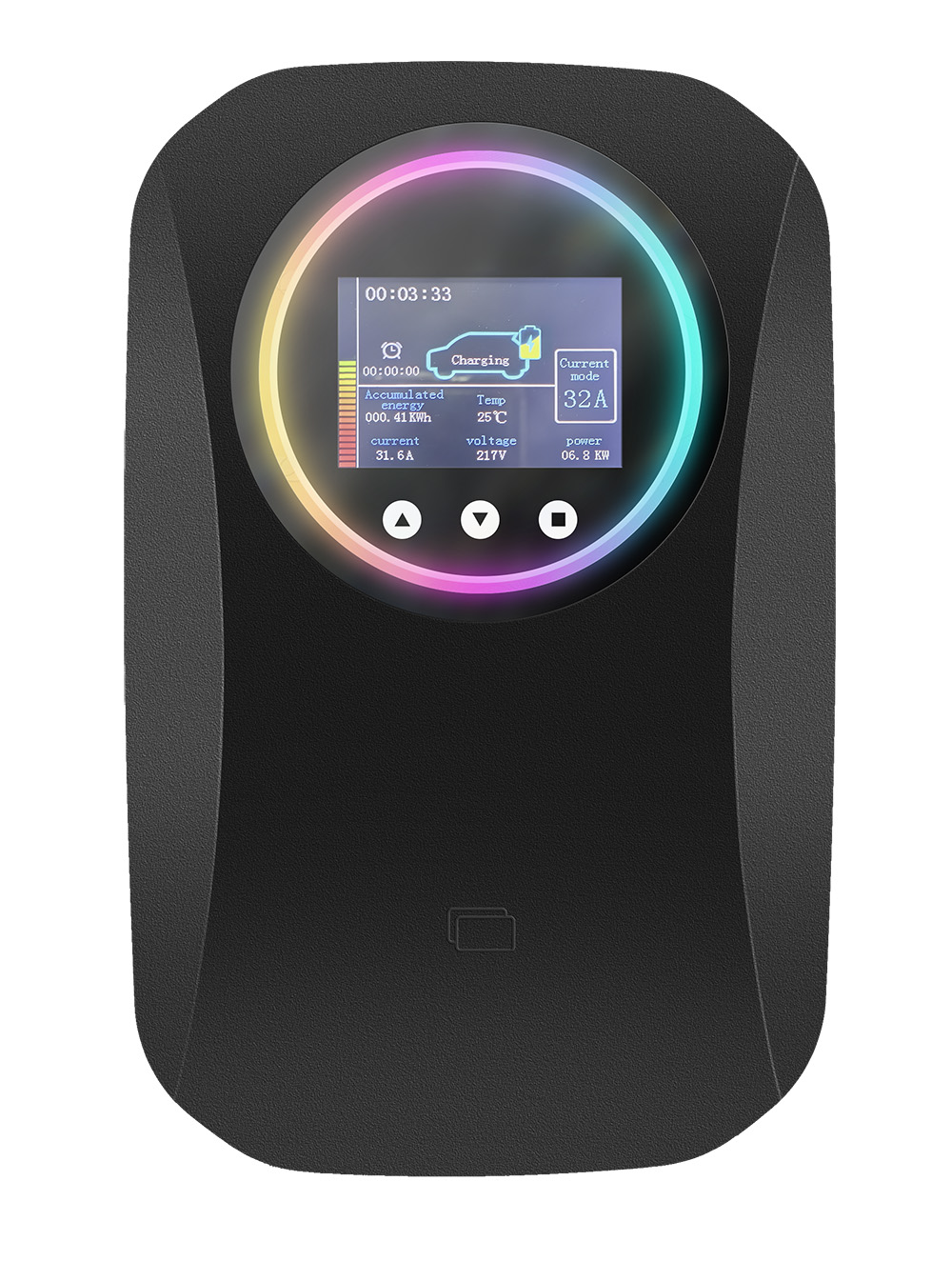

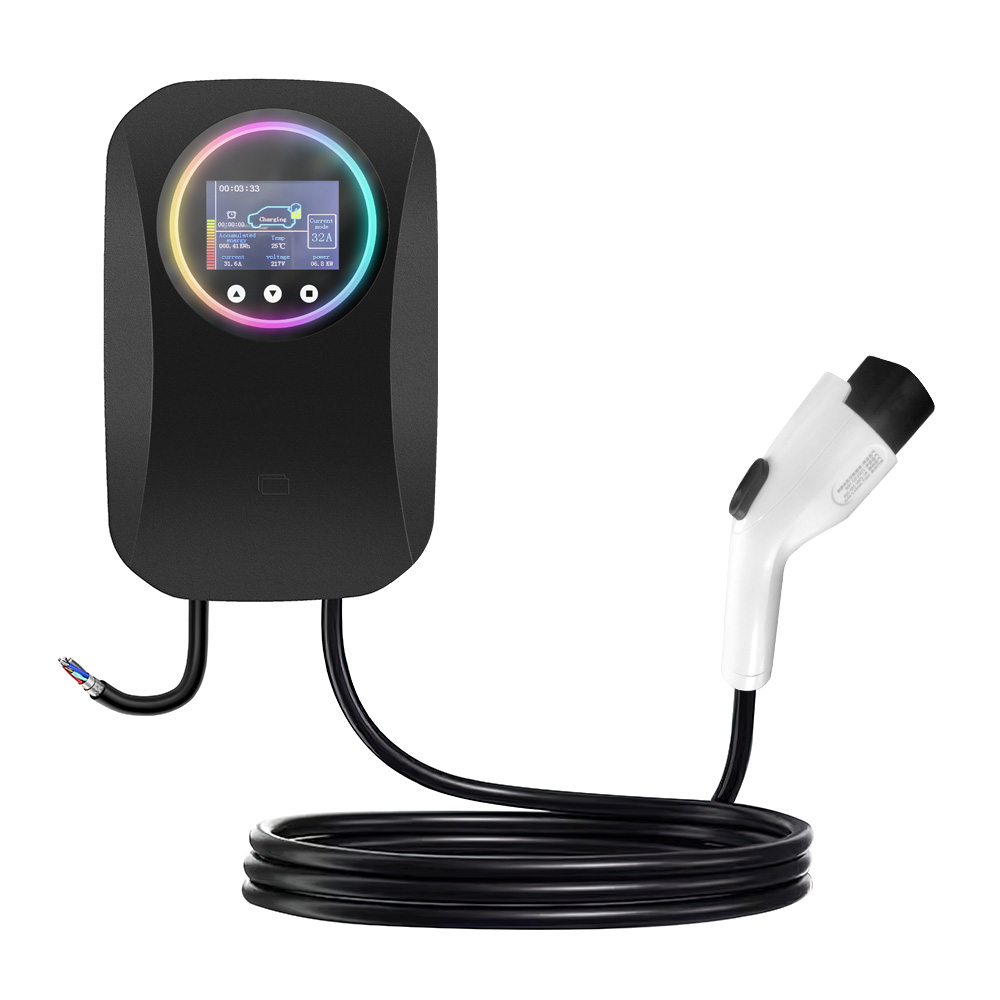

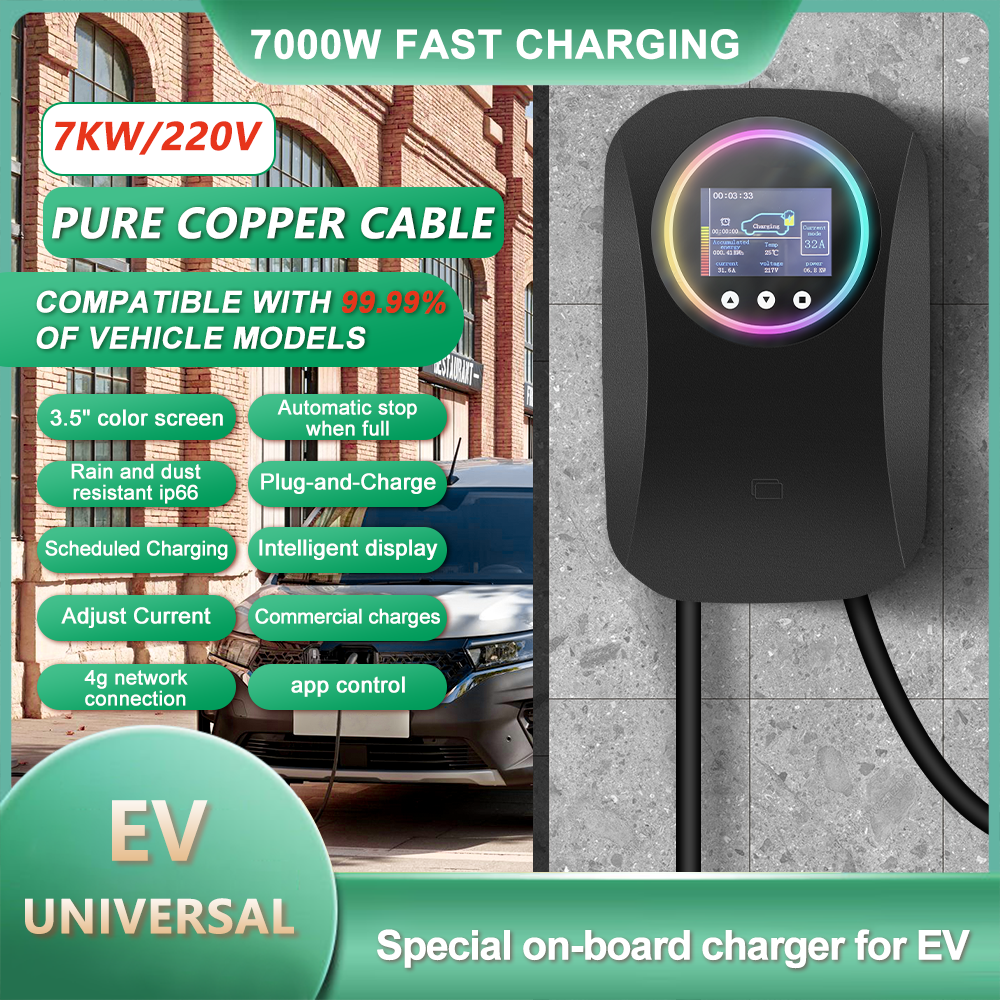

Wall-mounted EV Charger GW32

Input /Output

Power supply type

Single phase, 3 phase

Rated power

7 /11KW (single phase), 11/ 22KW (3 phase)

Voltage

Single-phase (120-240V),   3 phase (380-400V)

Current

16A,32A,48A (adjustable)

Frequency

50/60Hz

Function

Starting mode

Plug and charge, RFID,   remote reservation

Display type

LED,   3.5 inch LCD screen

Network

4G, Ethernet, Bluetooth/wifi   (optional)

DLB

N/A

OCPP

Support

Protection

RCD

Type A, Type A+DC6mA

Electrical protection

leakage protection, overcurrent   protection, overvoltage protection, under-voltage protection,   over-temperature protection

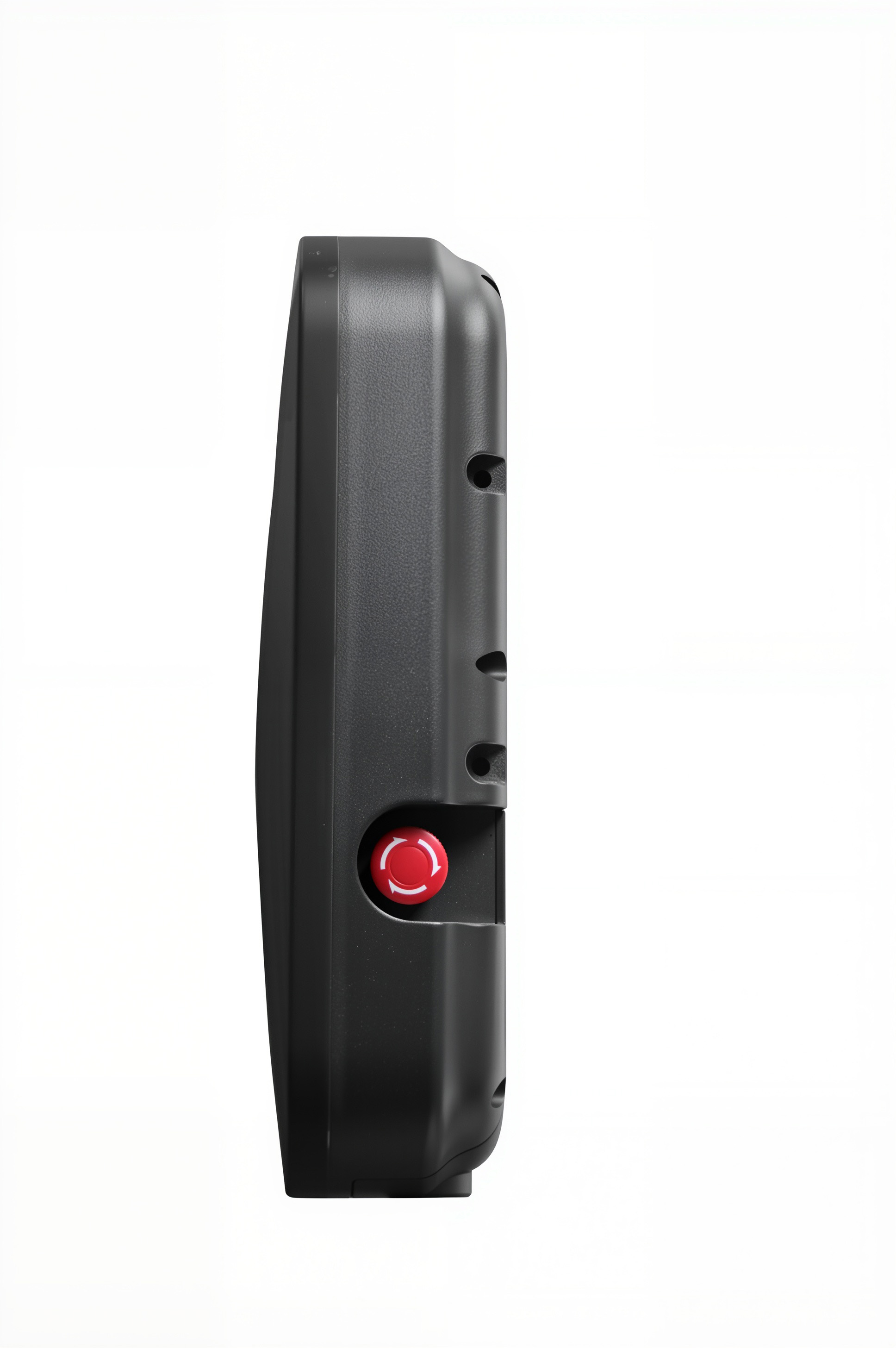

Emergency stop

Support

IP rating

IP55

Fall protection

IK10

Insulation resistance

≥10MΩ

Environment

Cooling method

Natural cooling

Operating temperature

-30℃~+50℃

Storage temperature

-40℃~+80℃

Operating humidity

5%~95%

Package

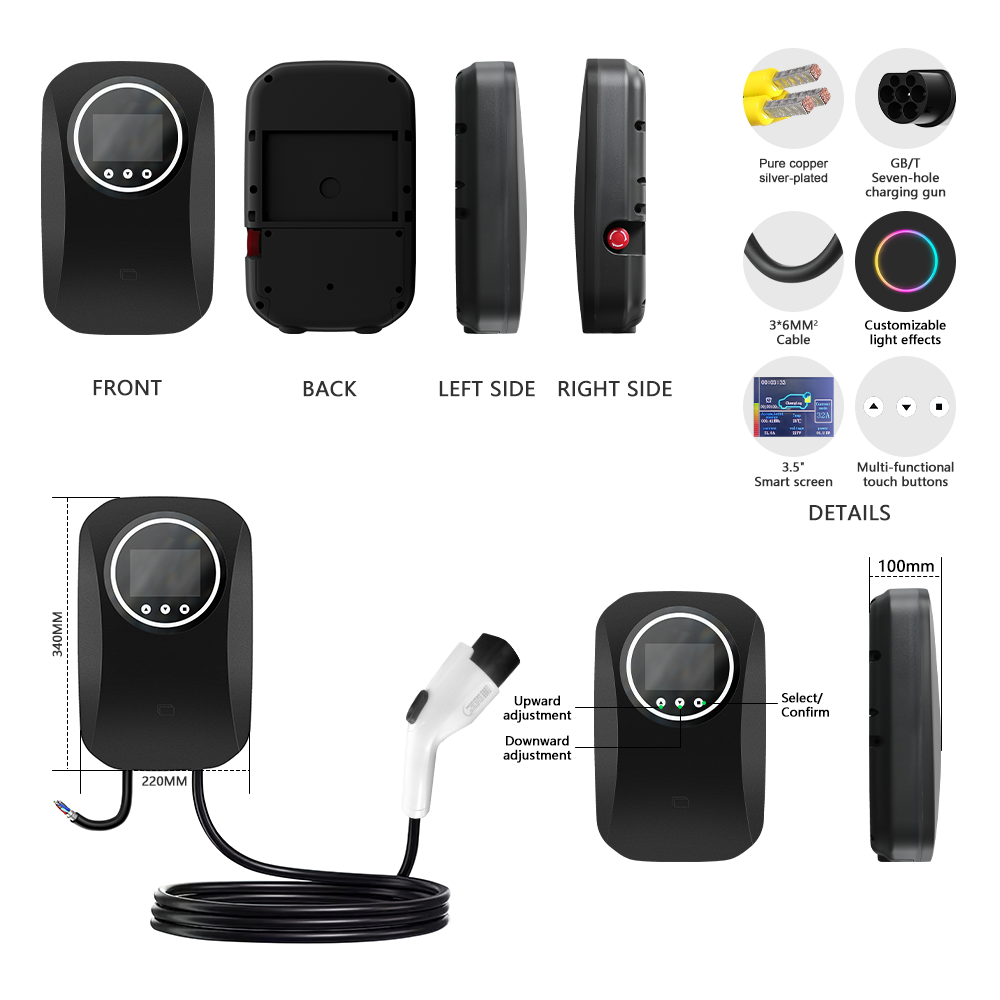

Product size

33*21*8cm

Charging connector holder

1piece

Others

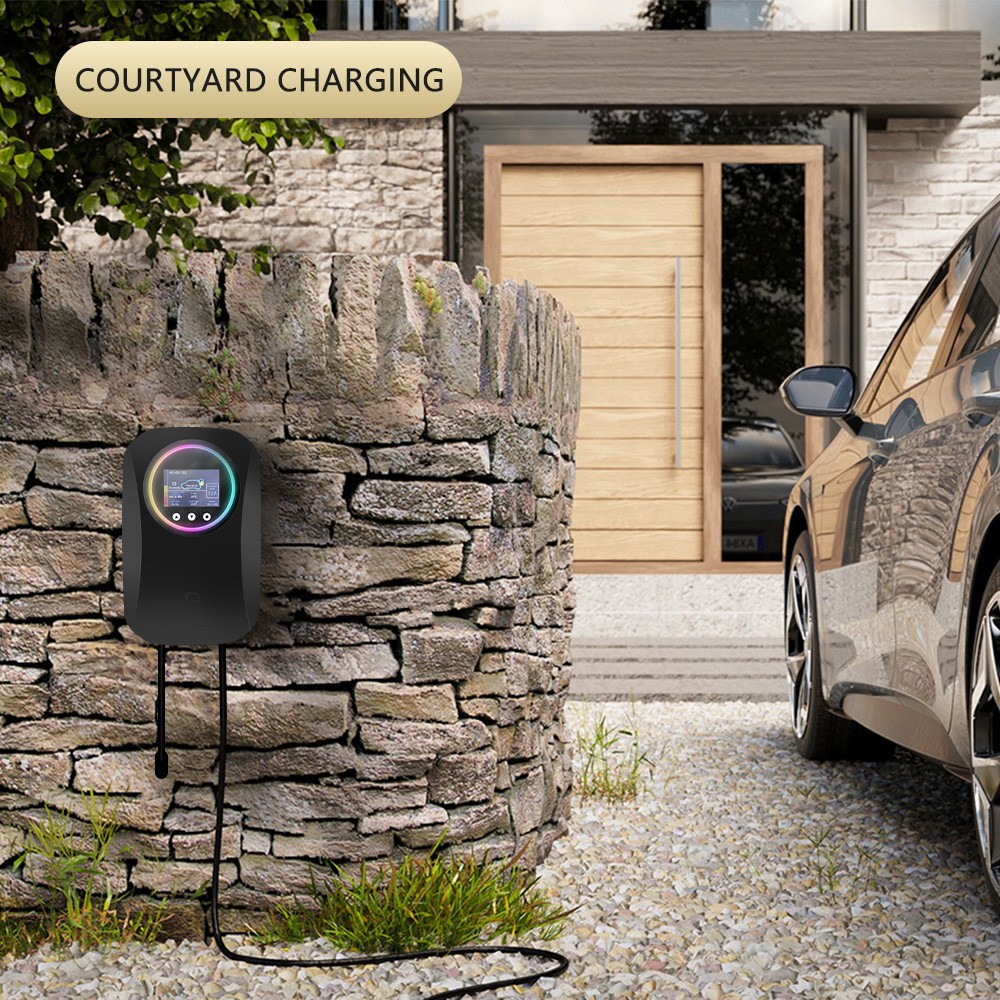

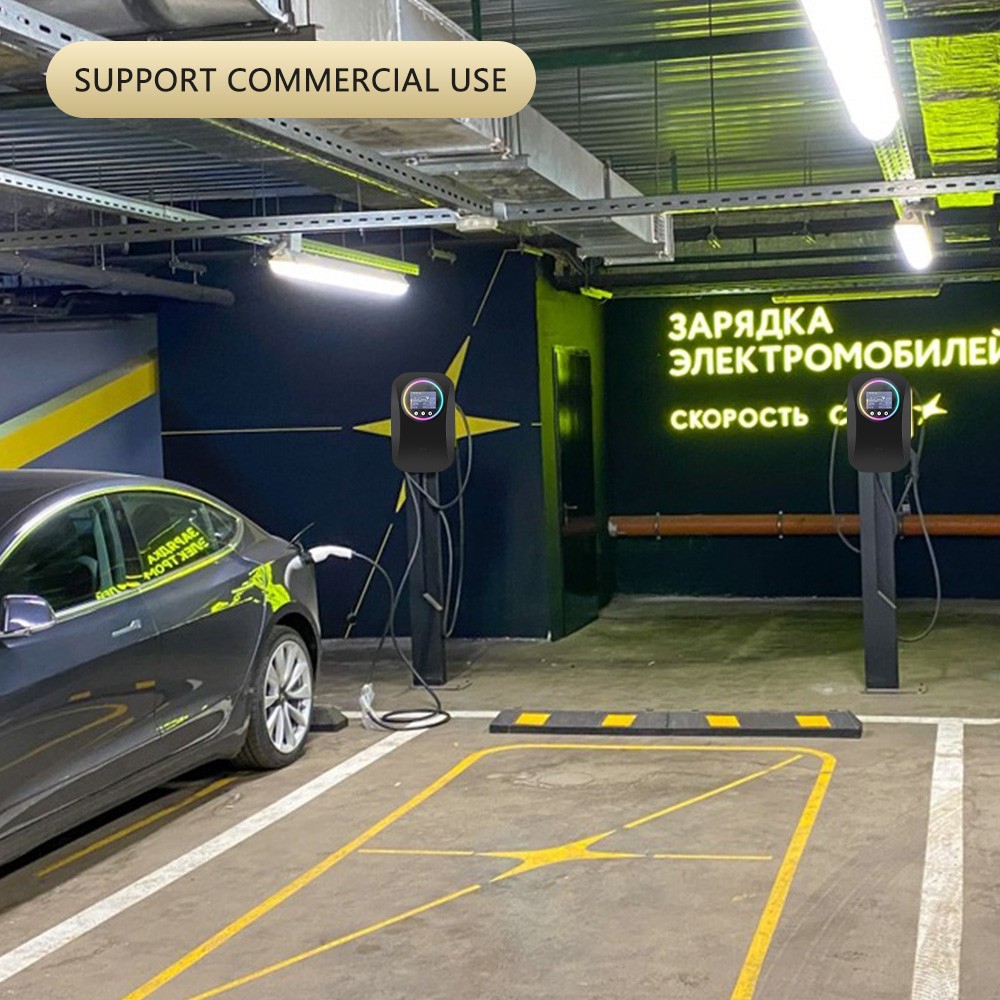

Installation type

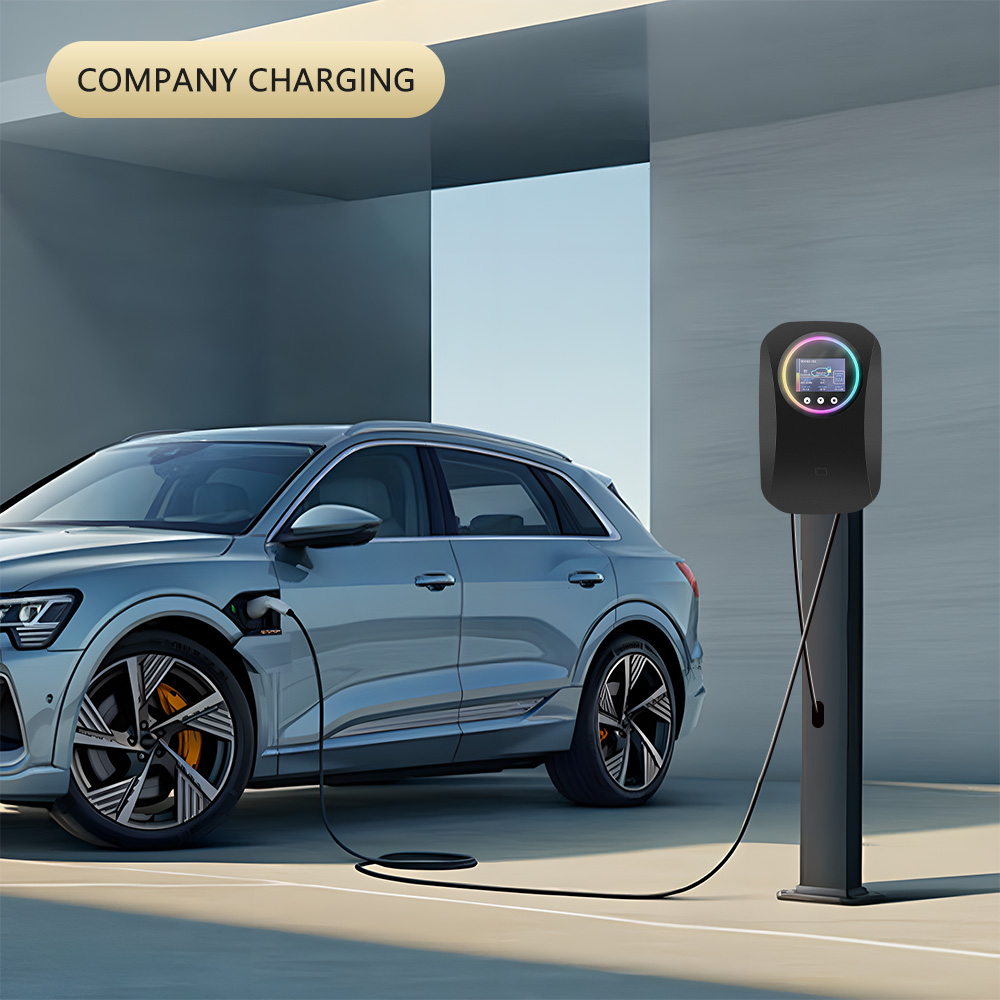

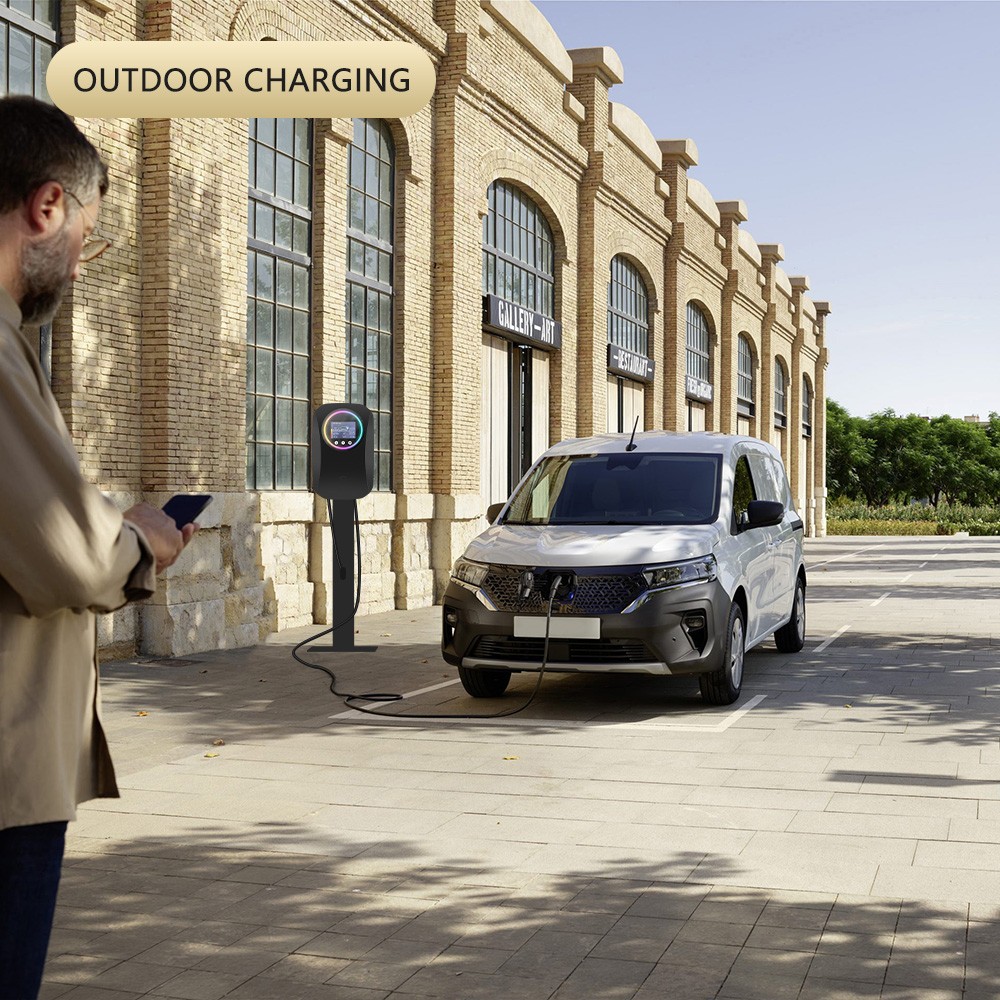

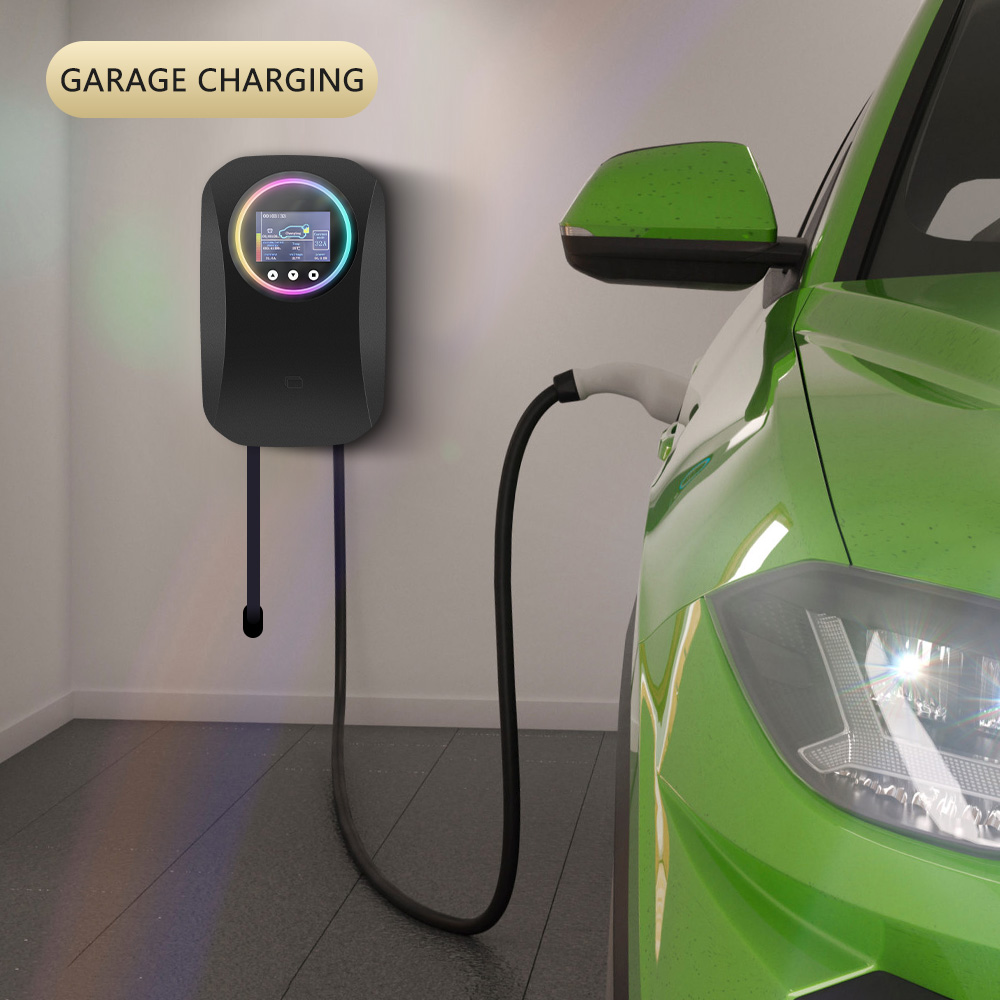

Wall-mounted, pole-mounted

Power cord

Plug, hardwired

Cable length

5M

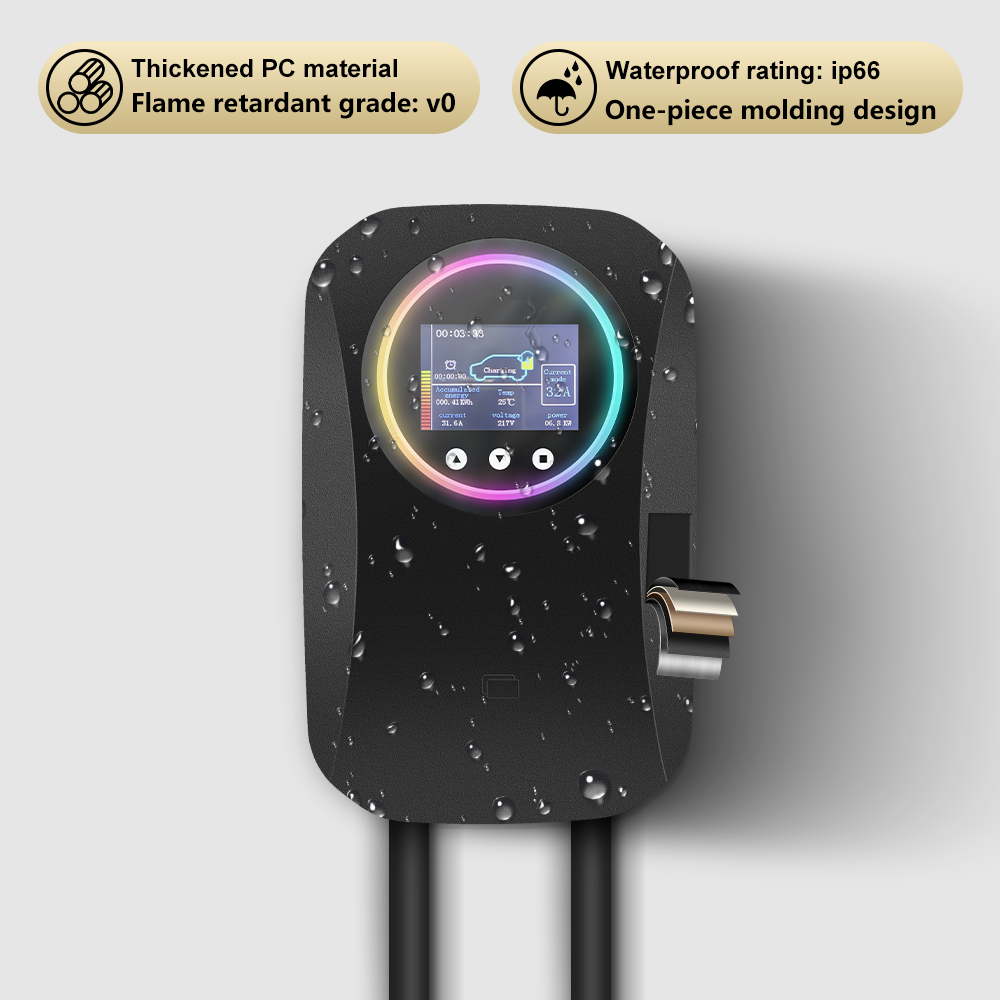

Material

PC9010

Efficiency

≥98%
